Q-2A-XLR-TX-RX
Channel Bidirectional XLR Balanced Audio over Fiber Optic Converter

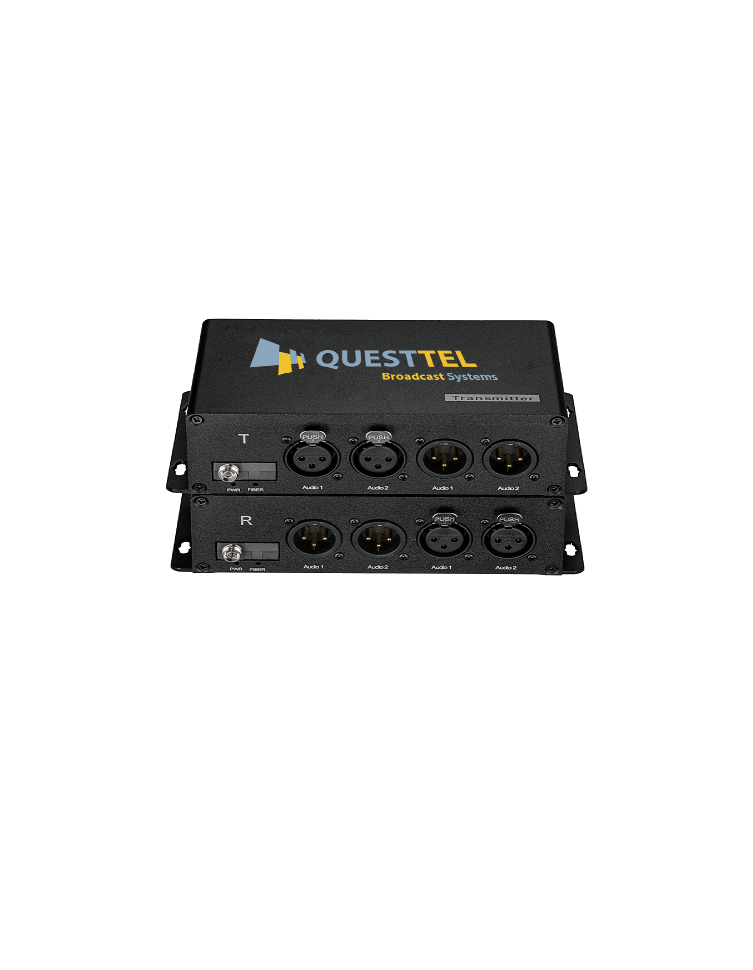

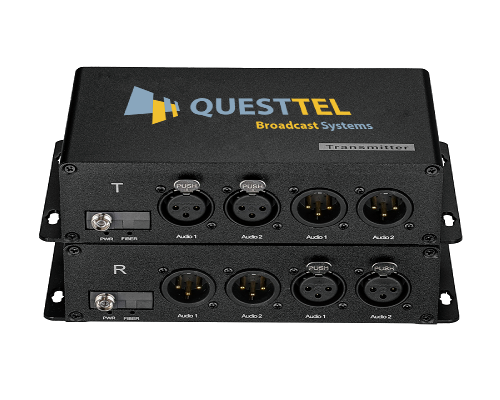

QuestTel's Q-2A-XLR-TX-RX is a 2 channel bidirection audio over fiber optic converter. It is built explicitly for broadcast-grade audio transport over fiber. It carries two different channels of balanced audio in both or either direction on a single fiber, using FPGA-based digital coding/decoding technology. With a 100dB dynamic range, an intelligent noise-control system and automatic high-pass filtering with DC-offset isolation, it delivers blast free audio with smooth signal rise and fall. Having a FC fiber connector, it is both single-mode and multi-mode compatible, being able to transmit up to 1km over multimode and 20km over single-mode fiber, with custom distances available upon request. Completely plug-and-play with no configuration required and supplied as a matched transmitter and receiver (TX/RX) pair, this XLR audio over fiber solution is perfect for broadcast studios, live events, intercom and audio distribution systems, and any application that demands clean, reliable, bidirectional analog audio over fiber.
Request Best Price:
- Transmits 2 channels of balanced audio bidirectionally over a single fiber
- Broadcast-grade analog balanced audio with 100dB dynamic range
- FPGA digital coding/decoding and clock recovery for high stability
- XLR (Cannon) interface with automatic high-pass filtering and DC-offset isolation
- Intelligent noise control
- Level-3 lightning protection up to 6KV (IEC61000-4-5)
- Single-mode and multimode compatible - 20km / 1km, up to 100km custom solutions upon ask
- LED status indicators for easy monitoring
| Audio Interface | |
| Connector | XLR (Cannon) balanced |
| Channels | 2 channels, bidirectional |
| Audio type | Broadcast standard analog balanced audio |
| Dynamic range | 100dB |
| Signal-to-noise ratio | 100dB |
| Filtering | Automatic high-pass, DC offset isolation |
| Noise control | Intelligent noise control, blast-free soft rise/fall |
| Lightning protection | Level 3, IEC61000-4-5 (8/20μs) differential mode: 6KV |
| Optical Interface | |
| Fiber Connector | FC |
| Fiber mode | Single-mode / multi-mode compatible |
| Transmission distance | Multimode 1KM, single-mode 20KM (customizable up to 100KM) |
| General | |
| Processing | FPGA digital coding/decoding and clock recovery |
| Indicator | LED status indicator |
| Operation | Plug and play, no setup required |
| Usage | Used in pairs (transmitter and receiver) |
