1L-HDMI-FE-8K-TX/RX

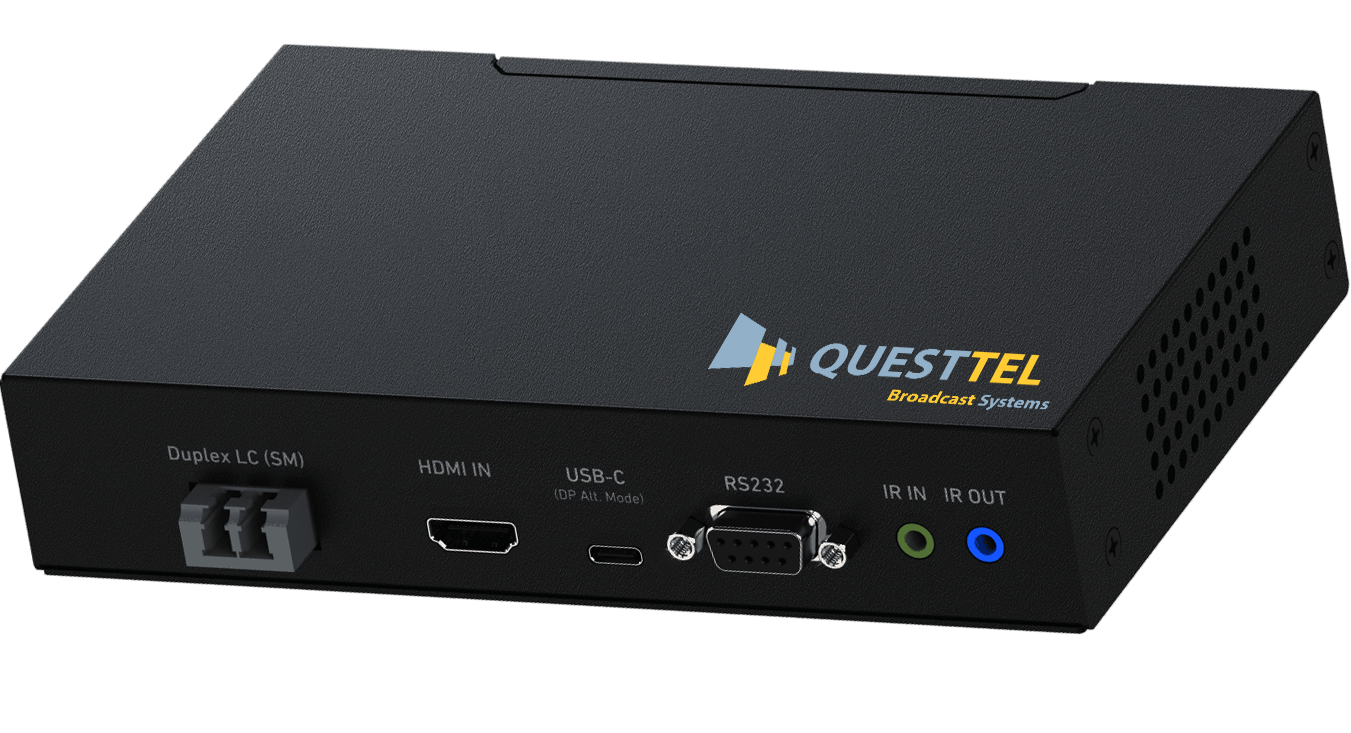

8K60 HDMI Over Fiber Transmitter and Receiver Kit with USB 3.1 KVM

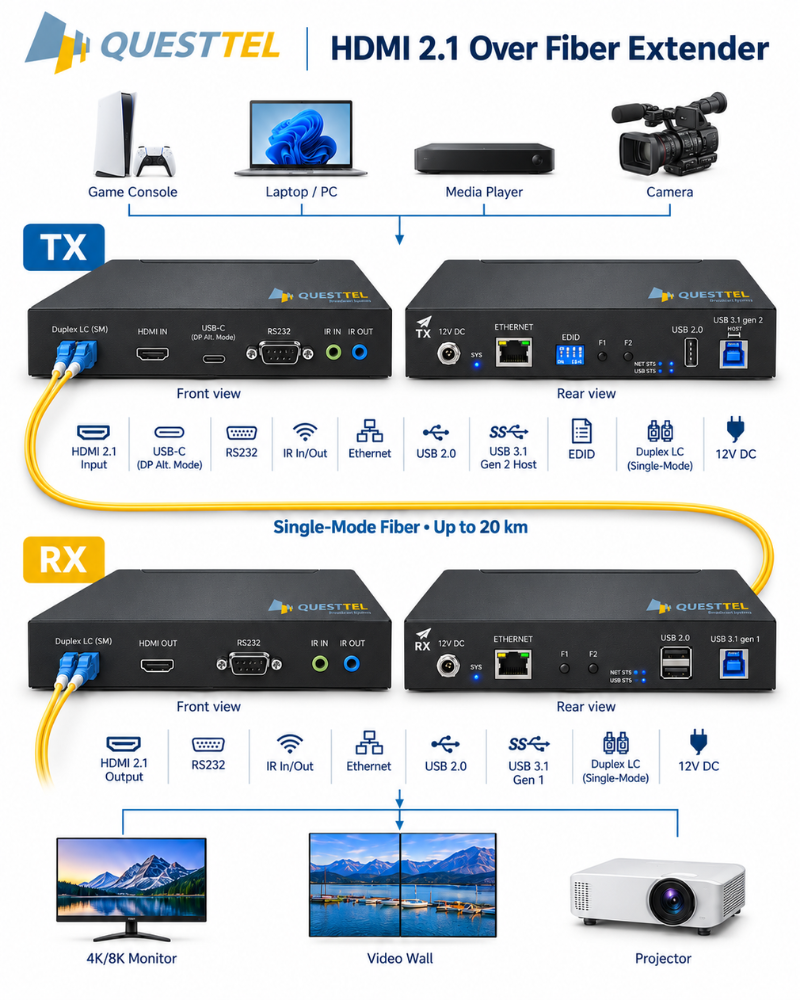

The 1L-HDMI-FE-8K-USB3-KVM-TX/RX is a broadcast-grade HDMI over fiber solution that includes embedded 8K60 4:4:4 DSC transport over a single-mode strand of fiber reaching distances up to 20km. It is capable of zero-frame-latency HDMI 2.1 transmission alongside unmodified 7.1ch digital audio, integrated 1Gb Ethernet channel, bi-directional RS-232 data up to 115,200 bps, and full-frequency IR pass-back, enabling the convenience of absolute remote control of your source device.
The 1L-HDMI-FE-8K-USB3-KVM-TX/RX is a one of a kind unit that is also capable of extending USB 3.1 Gen1/Gen2 connectivity with KVM function over the same fiber run. It also can support the transmission of keyboards, mice, and UVC webcams alongside your video and control signals without the need of additional cabling. Add in HDCP 2.3 compliance and EDID/CEC bypass, and the 1L-HDMI-FE-8K-USB3-KVM-TX/RX gives you the reach, resolution, and peripheral integration that gaming, broadcast, and professional AV installations need for their applications..
HDMI 2.1 over fiber: 8K60 4:4:4 DSC video over a single strand of single-mode fiber, up to 20km. USB 3.1 KVM, 7.1ch audio, 1G Ethernet, RS-232 and IR on the same fiber. Plug-and-play TX/RX kit for broadcast, control rooms and pro AV.
Request Price:
- Supports HDMI 2.1 & HDCP 2.3
- Supports uncompressed resolution up to 8K60 4:2:0 and visually lossless compression up to 8K60 4:4:4 DSC*
- Extend signals over single-mode fiber for distances up to 20 km.**
- Supports USB-C (Alt Mode DP 1.4) and simultaneous HDMI/DisplayPort input
- Supports VRR(Variable Refresh Rate) & ALLM(Auto Low Latency Mode)
- Extend HDMI signals up to 20 km (12.5 miles) over single mode fiber optic cables
- HDCP, EDID & CEC Bypass
- Pure unaltered uncompressed 7.1ch digital HDMI over fiber transmission
- Bypasses eARC, line audio, MIC, HPOUT, SPDI/F, DTS:X, and Dolby ATMOS
- Supports bi-directional full frequency IR signal from 20KHz to 60KHz
- Full duplex RS-232 control up to 115,200 bps
- Supports USB 3.1 Gen1 host mode for UVC webcam and USB 3.1 Gen2 UVC device mode
- Supports KVM function
- Integrated 1G Ethernet for LAN/network device
- USB transfer speed: Up to 83 MB/s read and 110 MB/s write.
| 1L-HDMI-FE-8K-TX/RX | |
| HDMI Compliance | 2.1 |
| HDCP Compliance | 2.3 |
| Video Bandwidth | up to FRL 6 (48G) |
| Video Support | up to 4K@60 4:4:4/ 4K144 4:4:4 DSC |
| HDMI over UTP | |
| HDMI over FIBER | 4K@60 4:4:4/ 4K@144 4:4:4 DSC up to 10km (6.25miles) [single mode fiber optic cable] |
| Audio Support | Surround sound [up to 7.1ch) |
| IR Control | Two Way |
| RS232 Control | Full Duplex (115,200 bps) |
| Console Management | USB-C |
| Mechanical | |
| Housing Design | Metal |
| Casing Style | Wall Mountable |
| Power Connection | Interlocking Barrel |
| Power Supply | 12V DC, 1A |
| Power Consumption | 12 watts (Max.) |
| Operating Humidity | 20-90% RH (no condensation) |
| Operation temperature | 0~40C (32~104F) |
| Product Info | |
| Dimensions?215 (L) x 104 (W) x 44 (H) cm | |
| Weight | 0.6kg |
| Certifications | CE, FCC, RoHS |
