L-DVI-MI-FE-TX/RX
Mini 4K60Hz DVI Over Fiber Transmitter and Receiver Kit

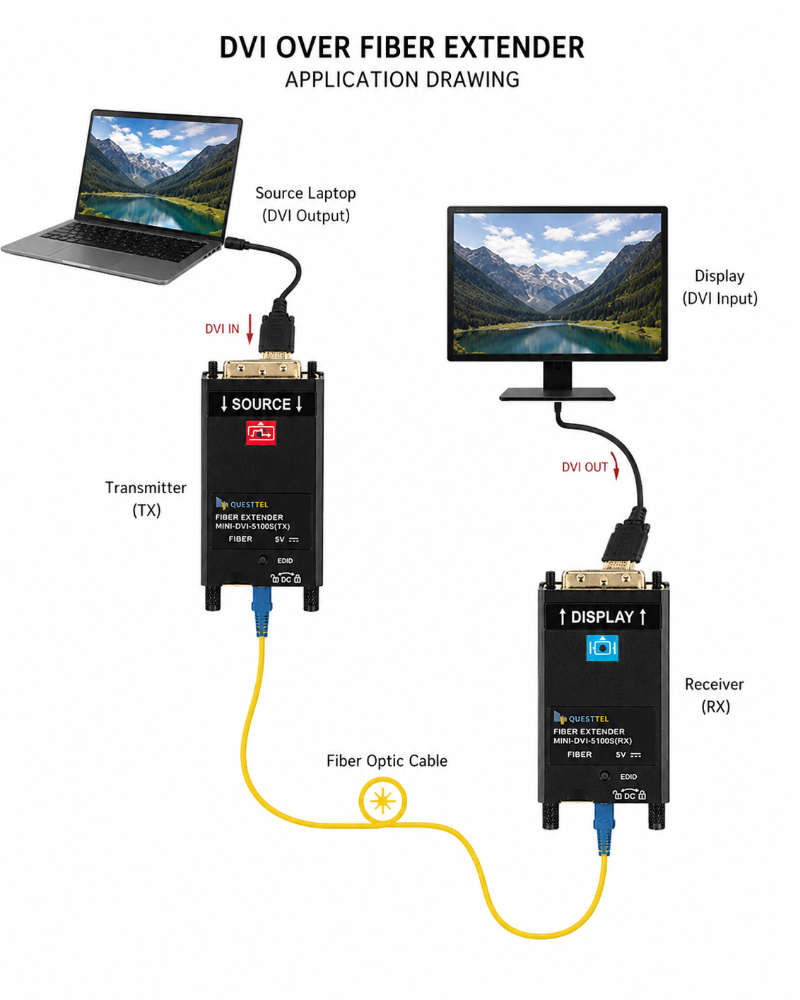

QuestTel's L-DVI-MI-FE-TX/RX is a miniature device that provides long-distance transmission (20km by default) of DVI signal over a single strand of fiber. Designed to be mini, and convenient without sacrificing reliability, and exceptional delivery of high resolution DVI signal. The kit transmits at 4K/2k x 60hZ DVI video without any compression whatsoever. The signal quality at the receiving side is the exact same as the source. The extender comes with the DVI 1.0 single-link standard and utilizes the HDMI 2.0 protocol. The L-DVI-MI-FE-TX/RX is optimal for several different applications that require long distance transmission of high quality DVI signals. Since transmission is secure over fiber, fiber is preferred in use-cases where the content must be secure. It is used in very large facilities such as airports, stadiums, live broadcast signal transmission, remote studio, universal digital video transmission business, telecommunication signal transmission business, airport or transportation hubs as well as connecting over very long distances between facilities such as college campuses.
Request Price:
- Transmits 4K x 2K 60Hz DVI video with no compression anywhere in the link
- Image at the receiver is pixel-for-pixel identical to the source
- DVI 1.0 single-link standard, carried using the HDMI 2.0 protocol
- 10.2 GHz bandwidth and 297 MHz pixel clock, with downward compatibility to lower resolutions
- Supports RGB, YCbCr 4:4:4 / 4:2:2 and YUV 4:2:0 color space
- Miniature zinc-alloy housing, 82 x 39 x 14.2 mm, installed by direct plug-in
- Runs over a single fiber at 1310 to 1550 nm on an LC connector
- Dedicated EDID button on the transmitter
- Optical span is immune to electromagnetic interference and inherently secure
- Low power draw, under 1.5 W from a 5 V supply
- CE, RoHS and FCC certified, backed by a 3 year warranty
| L-DVI-MI-FE-TX/RX | |
| Fiber Index | |
| Wavelength | 1310 ~ 1550 nm (single fiber) |
| Rate | 10 Gbps |
| Tx power | > -3 dB |
| Rx sensitivity | > -10 dB |
| Fiber connector | LC |
| DVI Parameters | |
| Specification | DVI-D (pure digital signal) |
| Version | DVI 1.0 (single-link) |
| Bandwidth | 10.2 GHz |
| Resolution | 4K x 2K 60Hz and downward compatibility |
| Color space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Pixel clock | 297 MHz |
| Physical interface | DVI 24+1 male type |
| Power | |
| Power supply | 5 V |
| Power dissipation | < 1.5 W |
| Physical interface | DC 3.5 x 1.35 mm jack |
| Mechanical | |
| Shell metal | Zinc-alloy |
| Dimensions (L x W x H) | 82 x 39 x 14.2 mm |
| Net weight | 0.2 kg |
| Way to install | Direct plug-in |
| Color | Black (other on request) |
| Package | |
| Material | Kraft paper |
| Package size | 210 x 160 x 46 mm |
| Gross weight | 0.4 kg |
| Environment | |
| Working temperature | -20°C ~ 75°C |
| Storage temperature | -40°C ~ 85°C |
| Humidity | 0 ~ 95% (non-condensing) |
| MTBF | > 100,000 hours |
| Compliance | |
| Certification | CE, RoHS, FCC |
| Warranty | 3 years |
