1B-SDI-12G-LCD-PTG
12G/6G/3G/HD/SD-SDI Pattern Generator
The 1B-SDI-12G-LCD-PTG is the ultimate industry-grade unit for testing as well as SDI pattern generation. The cutting-edge model allows for multi-format support for 12G/6G/3G/HD/SD signal and a broad variety of testing patterns which makes it a vital tool for different professionals in the AV space. Some unique features that the 1B-SDI-12G-LCD-PTG has includes audio (SMPTE-291M) and supports up to 8 channels of AES compliant audio at a 48KHz sample rate. The unit is equipped with four buttons, an LCD screen, and an interface that is easy to use, and allows for quick access to a spectrum of features, making it a reliable, cost-effective solution for anyone in need of generating SDI signals. The 1B-SDI-12G-LCD-PTG generates test patterns across a comprehensive set of output resolutions and bit rates, including NTSC, PAL, 720p, 1080i, 1080p, and 4K2K. Native 10-bit color space support ensures precise signal fidelity for critical testing applications.
12G SDI pattern generator: industry-grade 12G/6G/3G/HD/SD-SDI test pattern generator with embedded audio, LCD control and native 10-bit color, up to 4K2K.
Request Price:
- Industry-grade 12G/6G/3G/HD/SD-SDI multi-format pattern generator
- Broad range of built-in video test patterns
- Embedded audio (SMPTE-291M); up to 8 channels of AES-compliant audio at 48KHz

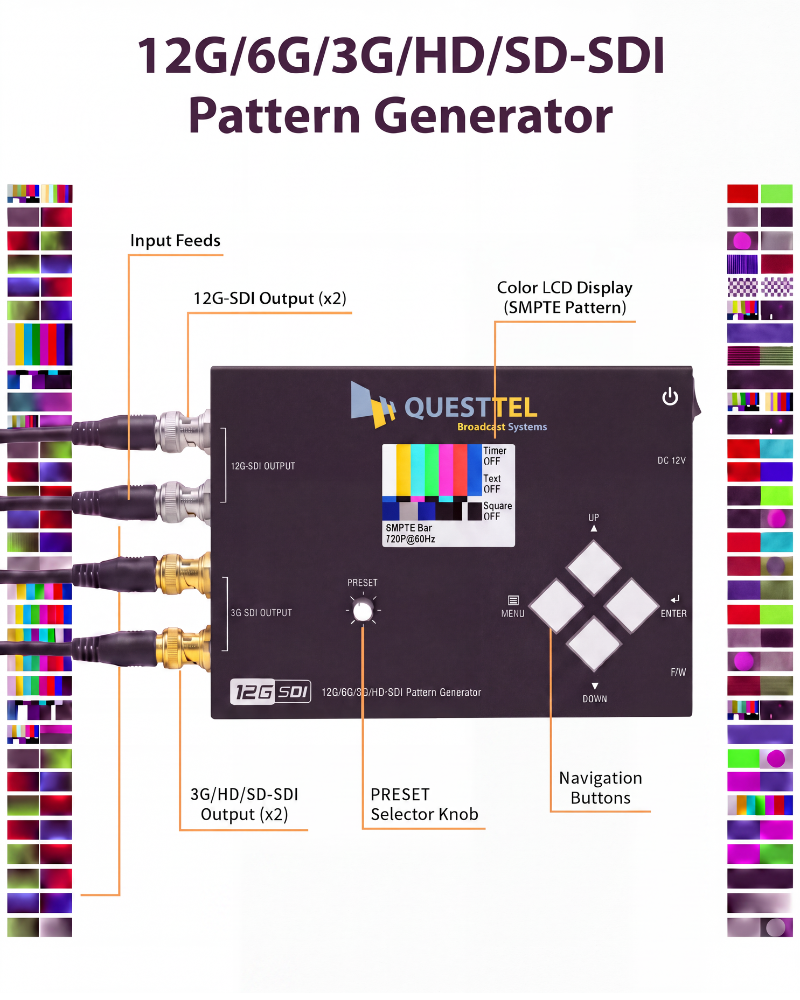

- Four-button control with LCD screen and an easy-to-use interface
- Output resolutions including NTSC, PAL, 720p, 1080i, 1080p and 4K2K
- Native 10-bit color space for precise signal fidelity
| Video Patterns | |
| 100% Color Bars, Borderline, Random Noise, Check Field, Black, Vertical Lines, Black / White alternate fields, Full Grey / Full White, Black to White Gradient, Random Generator for all still patterns, moving squares, White noise, Inverse effect with still pattern, Scrolling Title | |
| SDI Type & Format | |
| SMPTE 2082 (12G-SDI) | 11.88 Gbps: 2160p at 50/59.94/60 Hz |
| SMPTE 2081 (6G-SDI) | 5.94 Gbps: 2160p at 25/29.97/30 Hz |
| SMPTE 424M (3G-SDI) | 2.97 Gbps: 1080p at 50/59.94/60 Hz (4:2:2) |
| SMPTE 274M (HD-SDI) | 1.485 Gbps: 1080p at 23.98/24/25/29.97/30 Hz, 1080i at 50/59.94/60 Hz |
| SMPTE 292M (HD-SDI) | 1.485 Gbps: 1080i at 30 Hz, 720p at 60 Hz |
| SMPTE 296M (HD-SDI) | 1.485 Gbps: 720p at 23.98/24/25/29.97/30/50/59.94/60 Hz |
| SMPTE 259M (SD-SDI) | 270 Mbps: NTSC 525 at 59.94 Hz, PAL 625 at 50 Hz |
| Cable Reach | |
| 12G-SDI | up to 50m (165ft) |
| 6G-SDI | up to 100m (330ft) |
| 3G-SDI | up to 200m (660ft) |
| Audio Support | |
| Embedded audio | SMPTE-291M |
| Channels | Up to 8-channel LPCM / AES-compliant audio, selectable sample rates (48KHz) |
| Eye-pattern Measurements | |
| Amplitude | Within 800mV |
| Rise overshoot | Less than 2% |
| Fall overshoot | Less than 2% |
| Long-time jitter | < 1.0 UI |
| Timing jitter | < 1.0 UI |
| Alignment jitter | < 0.2 UI |
| ESD Protection | |
| Contact discharge | 8 KV |
| Air discharge | 15 KV |
