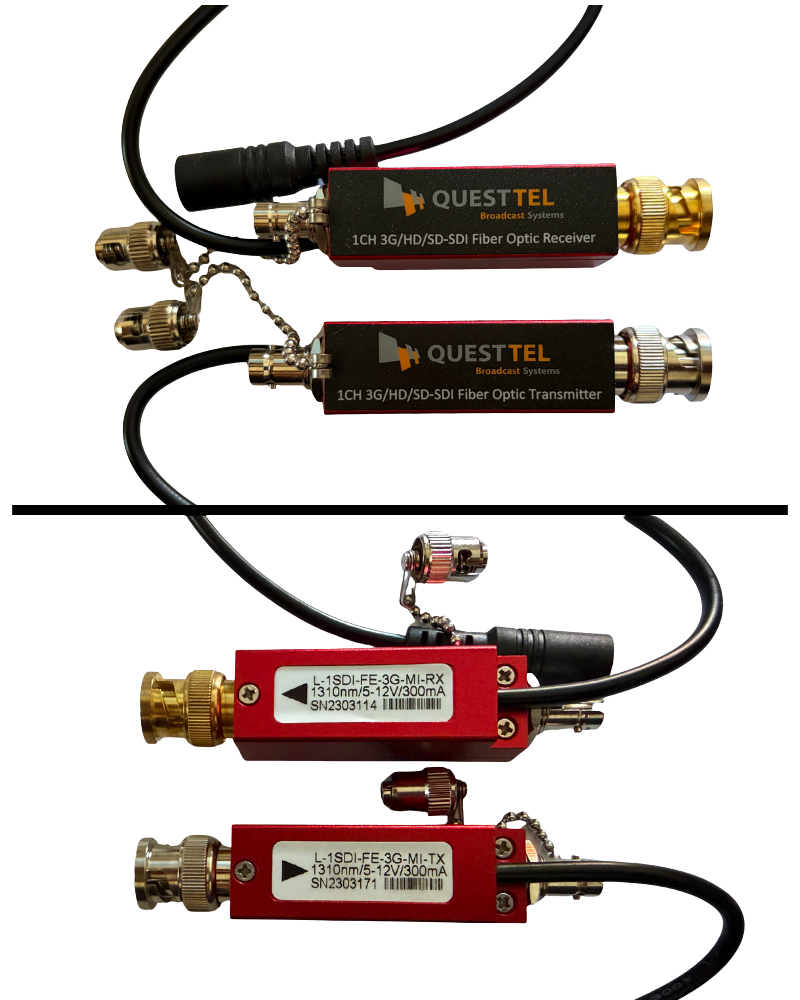

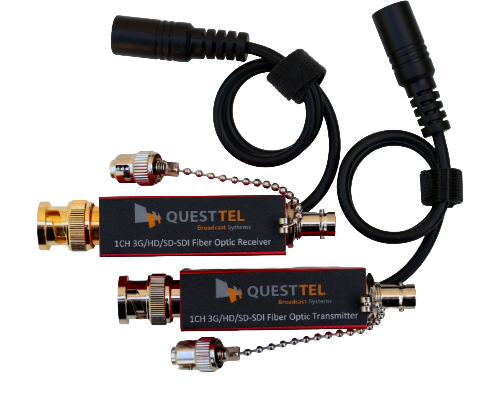

L-1SDI-FE-3G-MI-TX/RX
SD/HD/3G-SDI Over Fiber Extender Kit
QuestTel's mini L-1SDI-FE-3G-MI-TX/RX is a transmitter and receiver extender kit designed for SD/HD/3G-SDI signals over singlemode or multimode fiber. This module enables the optical transmission of one SD/HD/3G-SDI signal along with an embedded audio signal. The L-1SDI-FE-3G-MI-TX/RX kit is optimized for use in HD video conferences, HD video monitoring, intelligent transportation systems, and public security systems. Furthermore, this kit ensures lossless and high-quality video transmission without compression. The fiber optical transmission eliminates electromagnetic noise, making it an excellent solution for efficient, reliable, and secure transport of 3G-SDI signals. Integrated LEDs simplify troubleshooting by providing indications for DC power and optical laser status on the transmitter, as well as DC power and optical power reporting on the receiver.
Request Best Price:
- Bit Rate 5Mbps to 3Gbps
- Supports SDI Both Level A and Level B
- Supports Resolutions 1080p - 23.98Hz/24Hz/25Hz/29Hz/30Hz/59.94Hz/60Hz and 720/486 - 59.94Hz, and 720/576 – 50Hz, and 720/480 - 59.94Hz -1080i - 50Hz /29.7Hz/ 59.94Hz / 60Hz -720p - 50Hz / 59.94Hz / 60Hz - HD: 720p - 25Hz / 29.97Hz / 30Hz - SD: 525i - 59.94Hz, 625i -50Hz
- Portable, lightweight and efficient, reliable and quick and easy installation
- LED indicator to facilitate understanding of the equipment running status
- Supports embedded audio
- Support the maximum transmission distance of up to 100km. Default 20km Singlemode Fiber and 300m Multimode Fiber
- Support SD/HD/3G-SDI digital audio and video standards
- Power supply DC 5V-12V
- High compatibility, can auto-match source and display device
- Built-in automatic adjustment system, make the image smooth, clear and stable
- Simple to install, plug and play module.
| L-1SDI-FE-3G-MI-TX/RX | Optical interface |
| Wavelength(nm) | 1310nm |
| Transmission Distance Over Single Mode Fiber (Km) | 20Km 40/60/80/100-Km Optional |
| Transmission Distance Over Multimode Mode Fiber (Km) | 300 Meter |
| Maximum data rate | 2.97Gbps |
| Fiber type | Singlemode / Multimode |
| Interface | ST connector |
| Interface bandwidth | 3Gbps |
| L-1SDI-FE-3G-MI-TX Input | 3G-SDI / HD-SDI / SD-SDI / DVB-ASI |
| L-1SDI-FE-3G-MI- RX Output | 3G-SDI / HD-SDI / SD-SDI / DVB-ASI |
| L-1SDI-FE-3G-TX/RX Supports Signals |
SMPTE 424M/SMPTE292M/SMPTE259M/SMPTE297M/ SMPTE310/SMPTE305/DVB-ASI |
| Connector | BNC |
| Transmiter Input | 1-SDI |
| Reciver Output | 1-SDI |
| Bit rate | 3Gb/s,1.5Gb/s and 270Mb/s auto adaptive |
| Impendance | 75Ω |
| Power supply | DC 12V |
| Power dissipation | MAX 1.5W |
| Power consumption | 1.5W±10% |
| Working temperature | -30°C~+50°C /+80°F |
| Relative Humidity | ≤95%, no condensation |
| Equipment dimension | 90mm×19mm×18mm |

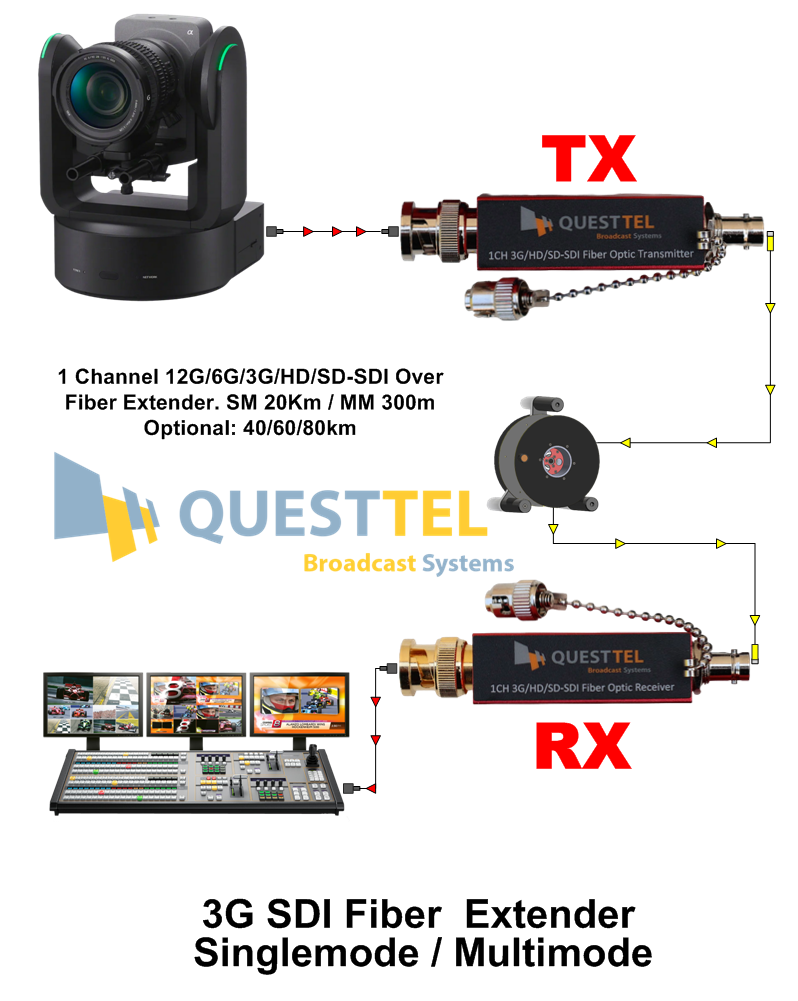

3G-SDI over Fiber Transmitter and Receiver
QuestTel HD-SDI Fiber optical converter is suitable for DVB return and production, On-site production, DVB-ASI transmission, News gathering, Live broadcast signal transmission, Remote studio, Universal digital video transmission business, Telecommunication signal transmission business... etc.
Disclaimer: Products, specifications and data are subject to change without notice, to improve reliability, function, design or otherwise.
QuestTel shall have no liability for any error or damage of any kind resulting from the use of this document.
