L-1SDI-FE-12G-MI-TX/RX
12G SDI Over Fiber, 12G SDI Fiber Extender
QuestTel's mini L-1SDI-FE-12G-MI-TX/RX is a transmitter and receiver extender kit designed for SD/HD/3G/6G/12G-SDI signals over singlemode or multimode fiber. This module enables the optical transmission of one 12G/6G/3G/HD/SD-SDI signal along with an embedded audio signal. The L-1SDI-FE-3G-MI-TX/RX kit is optimized for use in video conferences, video monitoring, intelligent transportation systems, and public security systems. Furthermore, this kit ensures lossless, high-quality video transmission without compression. Fiber optic transmission eliminates electromagnetic noise, making it an excellent solution for efficient, reliable, and secure transport of 12G-SDI signals. Integrated LEDs simplify troubleshooting by providing indications for DC power and optical laser status on the transmitter, as well as DC power and optical power reporting on the receiver.
- Bit Rate: 11.88Gbps, 5.94Gbps, 2.97Gbps, 2.967Gbps, 1.485Gbps, 1.483Gbps and 270Mbps auto adaption
- Supports Resolutions: 4096x2160/60Hz, 4096x2160/59.94Hz, 3840x2160/60Hz, 3840x2160/59.94Hz, 4096x2160/30Hz, 4096x2160/29.97Hz, 3840x2160/30Hz, 3840x2160/29.97Hz, 1080p/50Hz&&59.94Hz &60Hz, 1035i/50Hz &59.94Hz&60Hz, 1080i/50Hz &59.94Hz&60Hz, 1080p/720p&23.98Hz &24Hz &25Hz &29.97Hz &30Hz, 1080p/23.98Hz &24Hz &25Hz &29.97Hz &30Hz, 720p/23.98Hz &24Hz &25Hz &29.97Hz &30Hz &50Hz&59.94Hz &60Hz, 525i/59.94Hz; 625i &50Hz
- Portable, lightweight and efficient, reliable and quick and easy installation
- LED indicator to facilitate understanding of the equipment running status
- Supports embedded audio
- Supports a maximum transmission distance of up to 100km. Default 20km Singlemode Fiber and 300meters Multimode Fiber
- Support SD/HD/3G/6G/12G-SDI digital audio and video standards
- Power supply DC 5V-12V
- High compatibility, can auto-match source and display device
- Built-in automatic adjustment system, make the image smooth, clear and stable
- Simple to install, it is a plug-and-play module.
| L-1SDI-FE-12G-MI-TX/RX | Optical interface |
| Wavelength(nm) | 1310nm |
| Transmission Distance Over Single Mode Fiber (Km) | 20Km 40/60/80/100-Km Optional |
| Transmission Distance Over Multimode Mode Fiber (Km) | 300 Meter |
| Maximum data rate | 11.88 Gbps |
| Fiber type | Singlemode / Multimode |
| Interface | ST connector |
| Interface bandwidth | 11.88 Gbps |
| L-1SDI-FE-3G-MI-TX Input | 12G-SDI / 6G-SDI / 3G-SDI / HD-SDI / SD-SDI / DVB-ASI |
| L-1SDI-FE-3G-MI- RX Output | 12G-SDI / 6G-SDI / 3G-SDI / HD-SDI / SD-SDI / DVB-ASI |
| L-1SDI-FE-3G-MI- TX/RX Supports Signals |
SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M SMPTE 259M (C) /DVB-ASI standard |
| Connector | BNC |
| Transmiter Input | 1-SDI |
| Reciver Output | 1-SDI |
| Bit rate |
11.88Gbps, 5.94Gbps, 2.97Gbps, 2.967Gbps, 1.485Gbps, 1.483Gbps and 270Mb/s auto adaption |
| Impendance | 75Ω |
| Power supply | DC 12V |
| Power dissipation | MAX 1.5W |
| Power consumption | 1.5W±10% |
| Working temperature | -30°C~+50°C /+80°F |
| Relative Humidity | ≤95%, no condensation |
| Equipment dimension | 90mm×19mm×18mm |

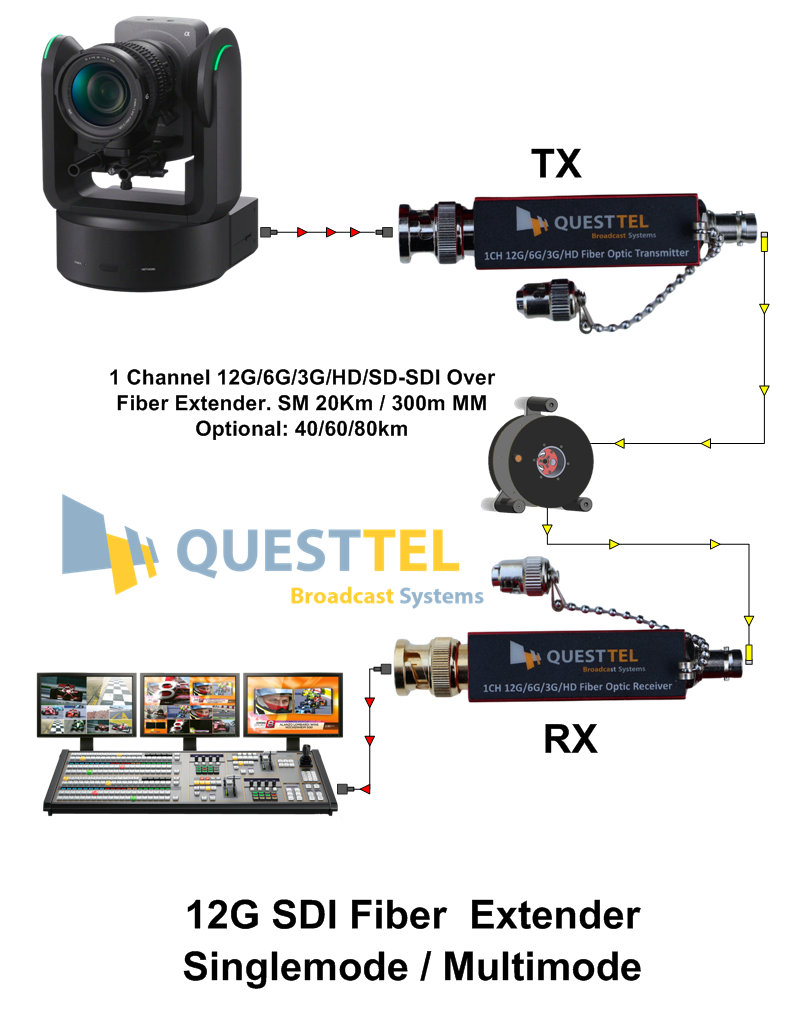

3G-SDI over Fiber Transmitter and Receiver
QuestTel 12-SDI fiber converter is suitable for DVB return and production, On-site production, 12G, GE and RS Data transmission, News gathering, Live broadcast signal transmission, Remote studio, Universal digital video transmission business, Telecommunication signal transmission business... etc.
